Navigation Pane: Application Menu

Switch between different Beast Core 6 plugins and editing tools using either the navigation icons on the far left or the full text options on the left-hand navigation pane.

Default View

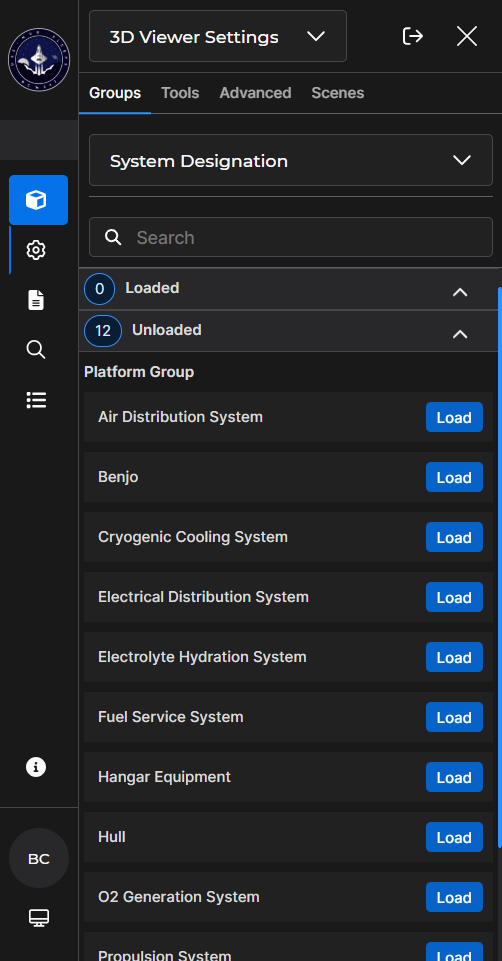

After selecting your desired Platform, the program opens with the:

• 3D Viewer on the main screen

• 3D Viewer Settings Platform in the left-hand content pane

  • Select the button beside each System or component Group you want to visualize as 3D Models in the 3D Viewer

Far-left Navigation Icons

• Provide visual representations of available plugins



• Indicate currently open plugins:

  • A solid blue highlight means that plugin is open on the main screen

  • A vertical blue line beside an Application plugin means that plugin is open in the left-hand content pane

    NOTE

    Admin (editing tool) plugins only open on the main screen.



Left-hand Navigation Pane

1. Click the button at the top of the left-hand content pane to close that pane and show the navigation pane.

2. Now you can view the full names of available plugins and editing tools next to their representative icons.



   NOTE

   Your customizable Beast Core program may not have the same plugin and editing tool options shown in the example screenshot above.

3. Click the Show Sidebar Content button in the navigation pane’s top right corner to hide the navigation pane and show the left-hand content pane.
