Connections Tab

To view a selected component’s direct connections in Beast Core 6, select the Connections (connected circles) icon at the top of the Details Pane.

Locate and View Component Connections

Prerequisite

Select a component in another application prior to accessing the Details Pane.

Refer to these articles for additional information:

• Details Pane Overview

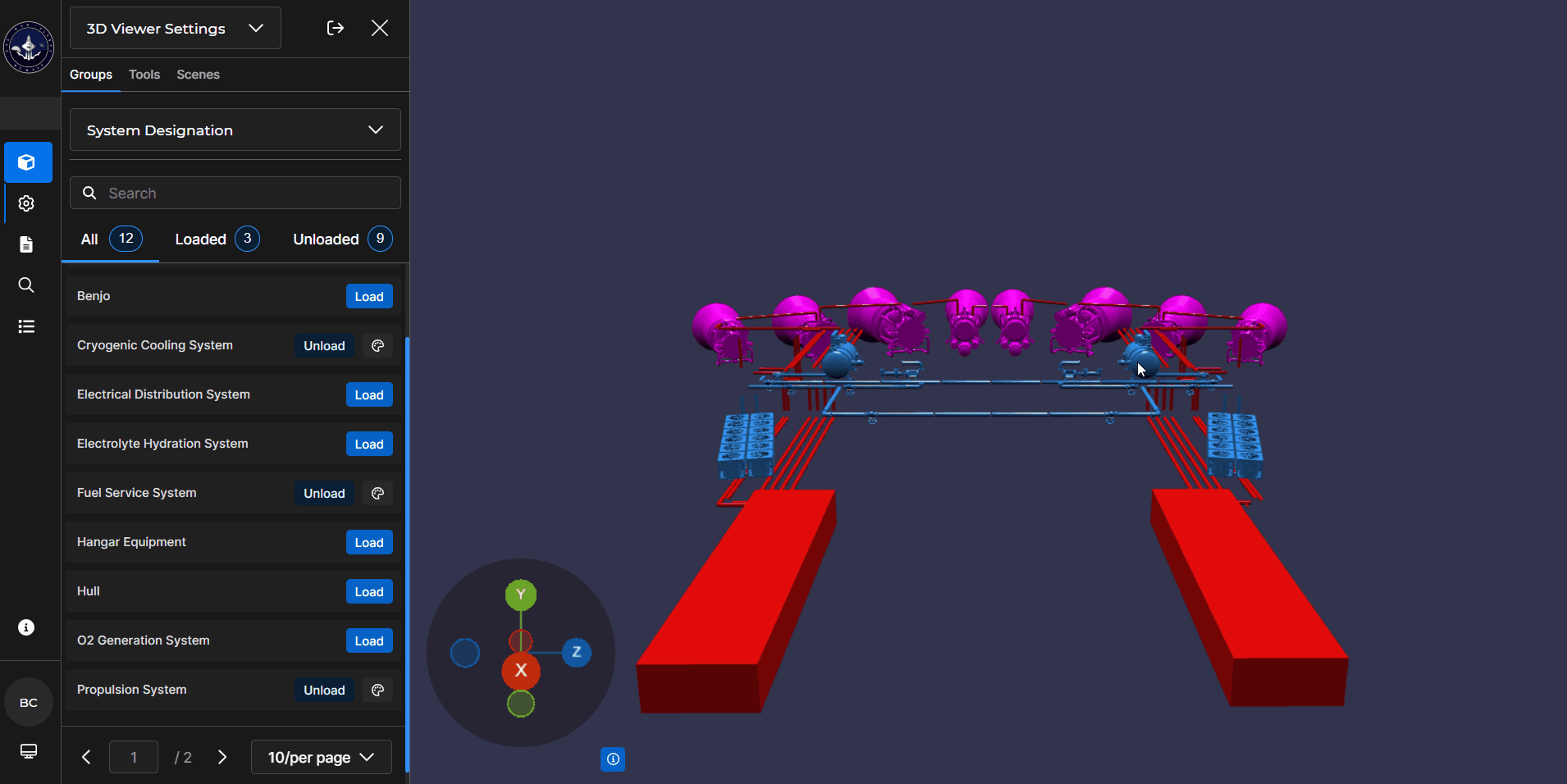

• View Details Pane alongside 3D Viewer

• View Details Pane alongside Search App

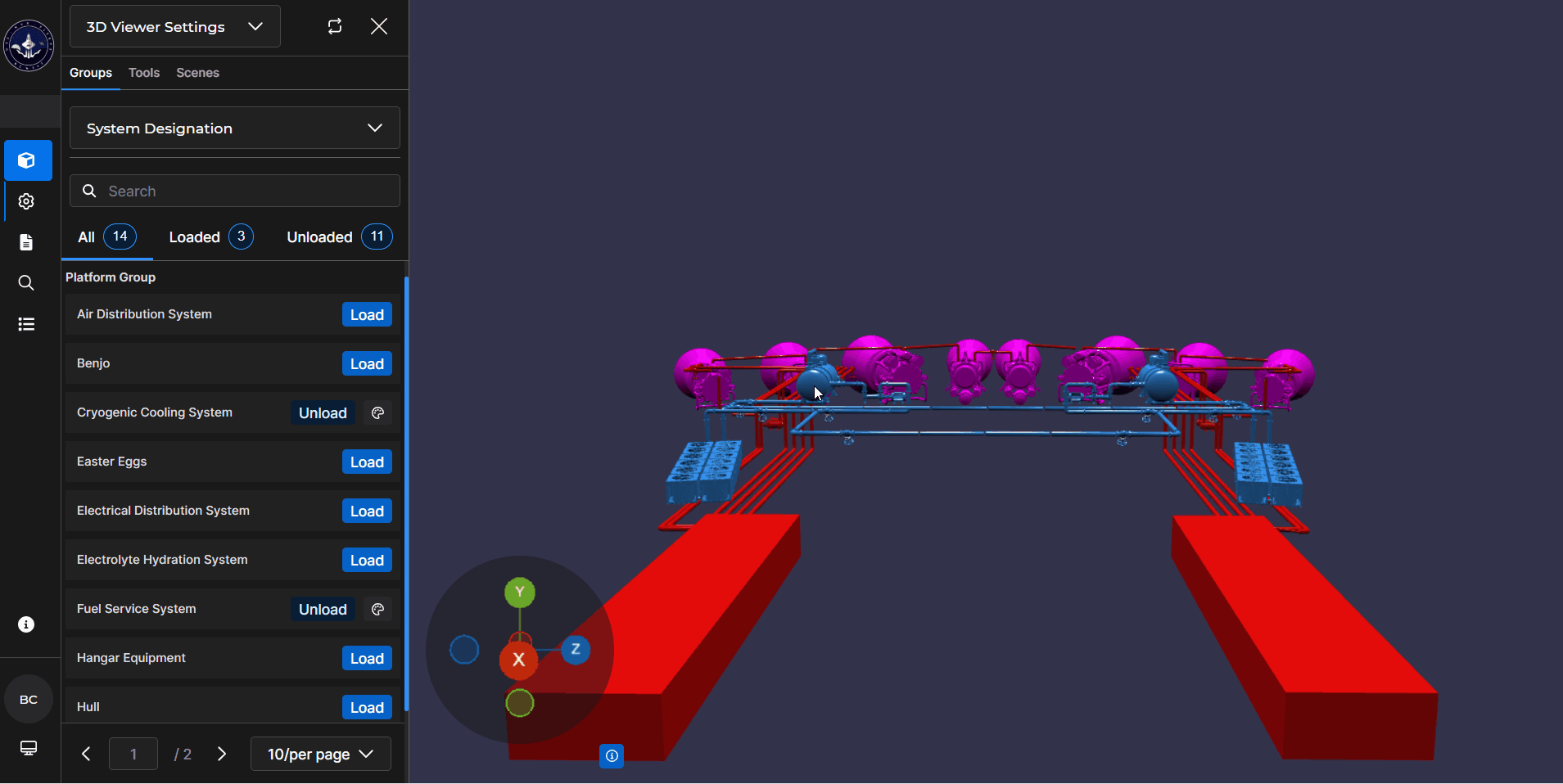

1. The Details Pane initially opens on the (default) Information  tab.

2. Select the Connections icon to open the Connections tab.

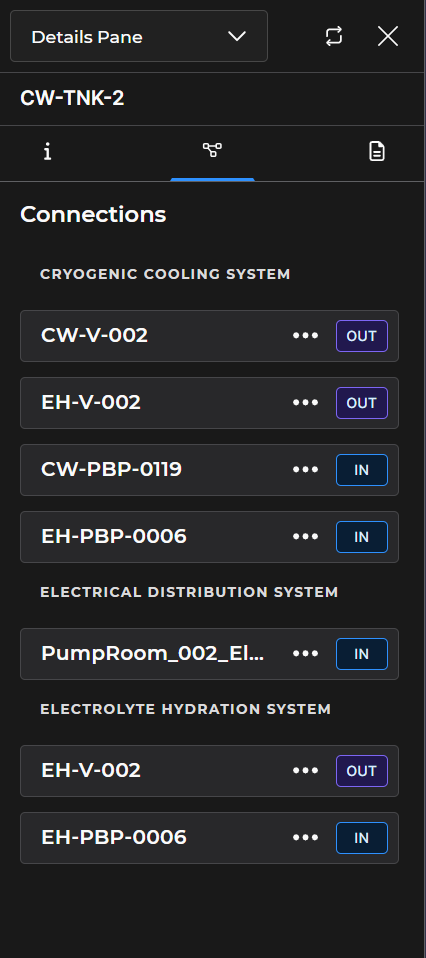

3. View a list of components with direct connections to your selected component.



   • The IN/OUT/BOTH designator to the right of a listed connection:

     • Describes the relationship of that connection to your selected component

     • Indicates the direction of how flow is carried through that connection

4. Click the Ellipsis  on the right side of a listed connection to access the Action Menu for that connection.



   NOTE

   The number of available Action Menu options varies, depending on your selected component.
